I recently read an article about implementing FPS counters which covers a number of different methods, the benefits and drawbacks; though, it focuses exclusively on simple moving averages (SMA). I’m not a game developer, but I’ve done enough graphical programming that I’ve encountered this problem a number of times and instead gravitate toward using exponential moving average (EMA), which I haven’t seen discussed much for this use case.
I’m not going to explain EMA or SMA or analyze the tradeoffs from a signal processing perspective. I don’t have much experience in that field, and I’m more interested in its computer science application. The plain and simple reason for preferring EMA is that its calculation has constant time and space complexity regardless of window size, while also being easier to implement, in my opinion. The standard formula for EMA is:
\[s_i = \alpha x_i + (1-\alpha)s_{i-1}\]
For our application, we will be keeping track of the moving average of frame duration which we will denote \(\bar{d}_i\). Our smoothed frames per second that we display to the screen as a counter is trivially calculated as \(1/\bar{d}_i\). We let \(d_i\) be the duration of the current frame and \(\bar{d}_{i-1}\) be the moving average after the previous frame. So the formula is:
\[\bar{d_i} = \alpha d_i + (1-\alpha)\bar{d}_{i-1}\]
The most important thing to figure out is what value we use for \(\alpha\), which can be thought of as the smoothing or forgetting factor. When using EMA on stocks it is common to see visualizations of n-day EMA. The way they figure out \(\alpha\) for this financial calculation relies on the concept of the average age of datapoints. For an SMA with a fixed sample window, the average age of datapoints is simply \(n/2\). For fixed frequency EMA, the average age of its datapoints is \(\frac{1-\alpha}{\alpha}\). By setting these two as equal, we derive a formula for \(\alpha\), whereby the EMA smoothing approximates the smoothing of an n-sample SMA:
\[ \alpha=\frac{2}{n+1} \]
This can be used as is for a dirty and simple FPS counter if you just want the average over last n frames. More generally, this can be useful in other cases, like backend or embedded development, for whenever you need a low overhead moving average for metrics emitted by fixed frequency events. However, as discussed in the original post, the problem with using fixed sample averages for FPS is that it doesn’t properly depend on time. Especially when graphing the values over time, a slower framerate will look quite smooth, while a high framerate will be jittery.
What we actually want is the average framerate over the last \(T\) duration in some time unit. To do this we will consider that we want our EMA to maintain a constant average age of datapoints \(T\), therefore:
\[T = \alpha (0) + (1-\alpha)(T + d_i)\] \[\alpha = \frac{d_i}{T + d_i}\]
Substituting this into our original formula we get:
\[\bar{d_i} = \frac{d_i}{T + d_i} d_i + (1-\frac{d_i}{T + d_i})\bar{d}_{i-1}\]
And after some simplification:
\[\bar{d}_i = \frac{d_i^2 + \bar{d}_{i-1}T}{T+d_i}\]
So if we want to approximate the smoothing of a duration based SMA like the method arrived at in the original blog, we set \(T\) to the SMA window duration divided by two because the average age of time windowed SMA data is simply half the window duration.

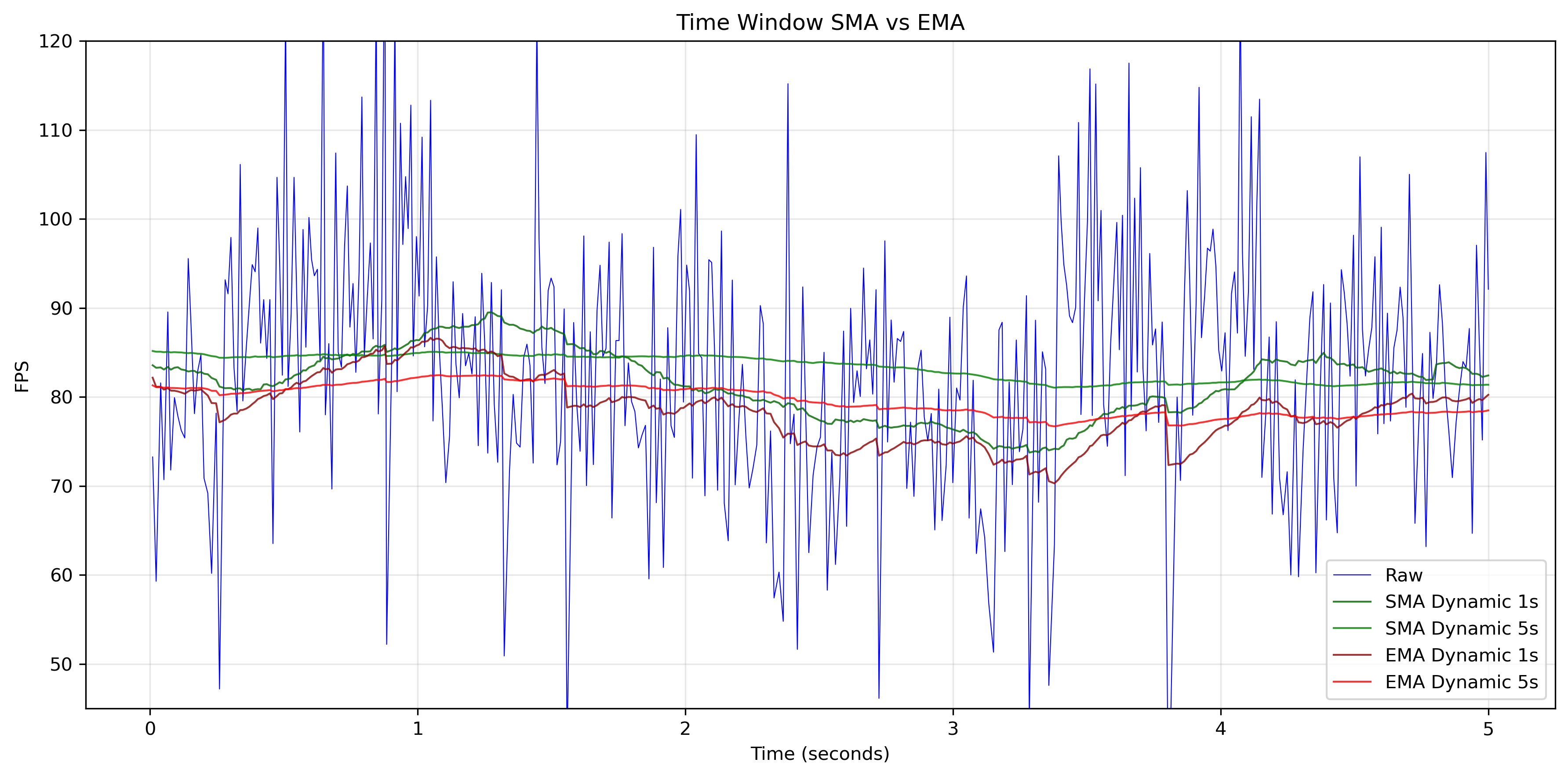

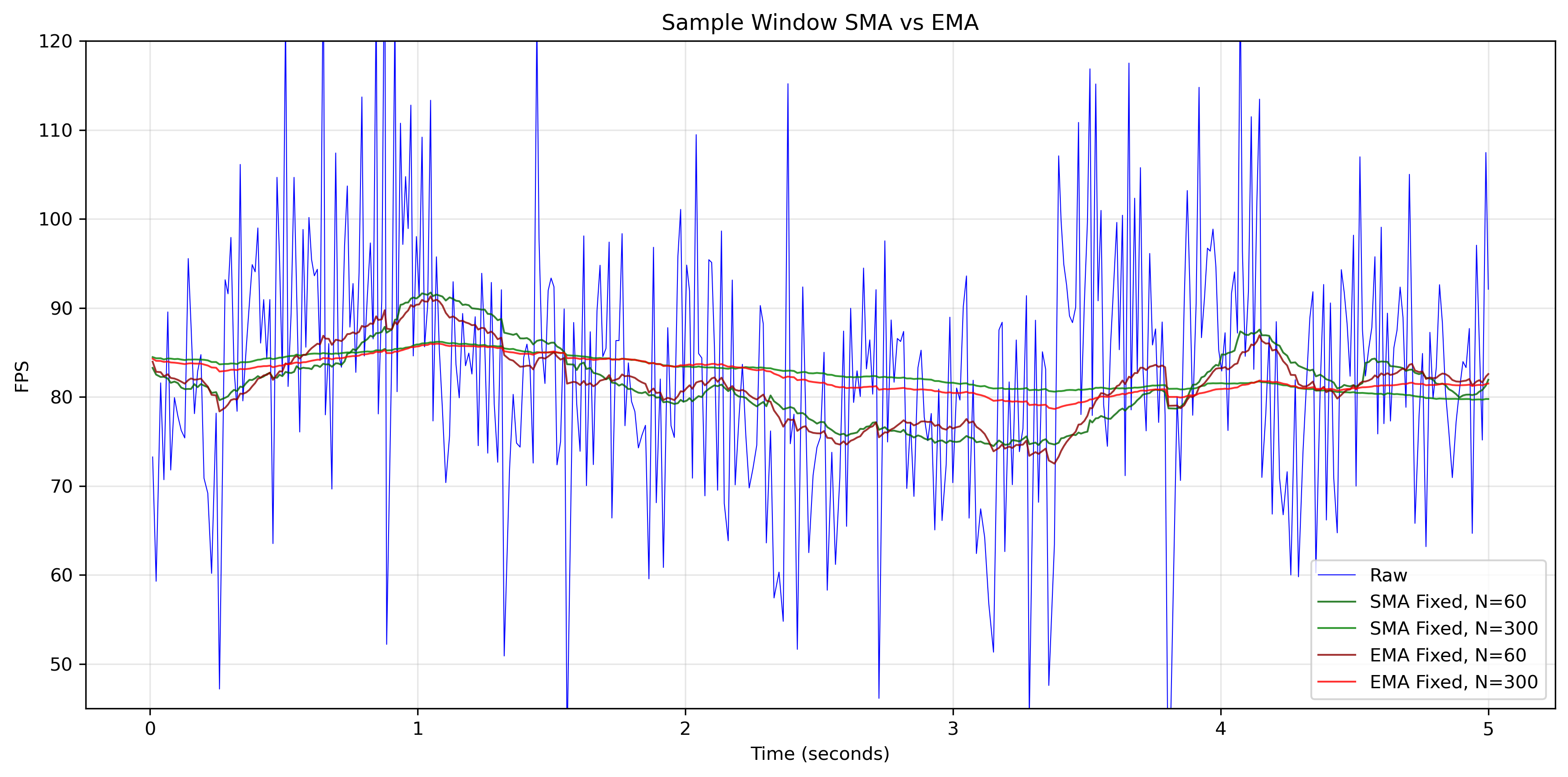

I took a random capture of 5 seconds of ARC Raider gameplace with CapFrameX then implemented assorted smoothing techniques to demonstrate the resulting FPS values.
Provided is some example C code for using this technique with the popular SDL library.
static Uint64 prev_frame_start;
float moving_average_of_frame_duration_sec(
float prev_avg_dur,
float sample_dur_sec
) {
Uint64 cur_frame_start = SDL_GetPerformanceCounter();
float frame_dur_unitless = (float)(cur_frame_start-prev_frame_start);
prev_frame_start = cur_frame_start;
float frame_dur = frame_dur_unitless/(float)SDL_GetPerformanceFrequence();
float t = sample_dur/2.0f;
return (frame_dur*frame_dur + prev_avg_dur*t)/(t+frame_dur);
}
